When a clutch or chain replacement makes sense
A roller shade clutch and chain system is simple and durable, but wear and small failures happen—especially in high-use rooms, rentals, and commercial spaces.
Replace the clutch, chain, or both when you notice:
- Chain slips or jumps under load
- Shade won’t stay at the position you set
- Grinding, clicking, or a “catching” feel in the clutch
- Chain loop is frayed, kinked, or broken
- Shade rolls unevenly because the drive side isn’t turning smoothly
If your shade is also rolling to one side, fix alignment first with how-to-troubleshoot-roller-shade-uneven-tracking.
If you’d rather replace the whole unit for a cleaner, smoother experience, the World Wide Shades Builder can price a new custom shade quickly.
Tools and parts you’ll need
- Screwdriver
- Step stool
- Needle-nose pliers (optional)
- Tape measure
- Replacement chain (correct length and bead size)
- Replacement clutch (matched to tube diameter)
- Optional: new brackets if yours are bent or worn
Not sure what to buy? Call (844) 674-2716—World Wide Shades can help you identify the right clutch and chain so you don’t order the wrong size.
Step 1: identify your roller shade system (before you remove anything)
Most DIY mistakes happen here. Clutches are not universal.
- Continuous-loop chain clutch (most common)
- Cordless spring system (no chain)
- Motorized system (no chain clutch)
If your shade is motorized and noisy, read how-to-fix-noisy-motorized-roller-shade instead.
Step 2: measure tube size and note bracket style
Clutches are usually designed for a specific tube diameter.
Measure:

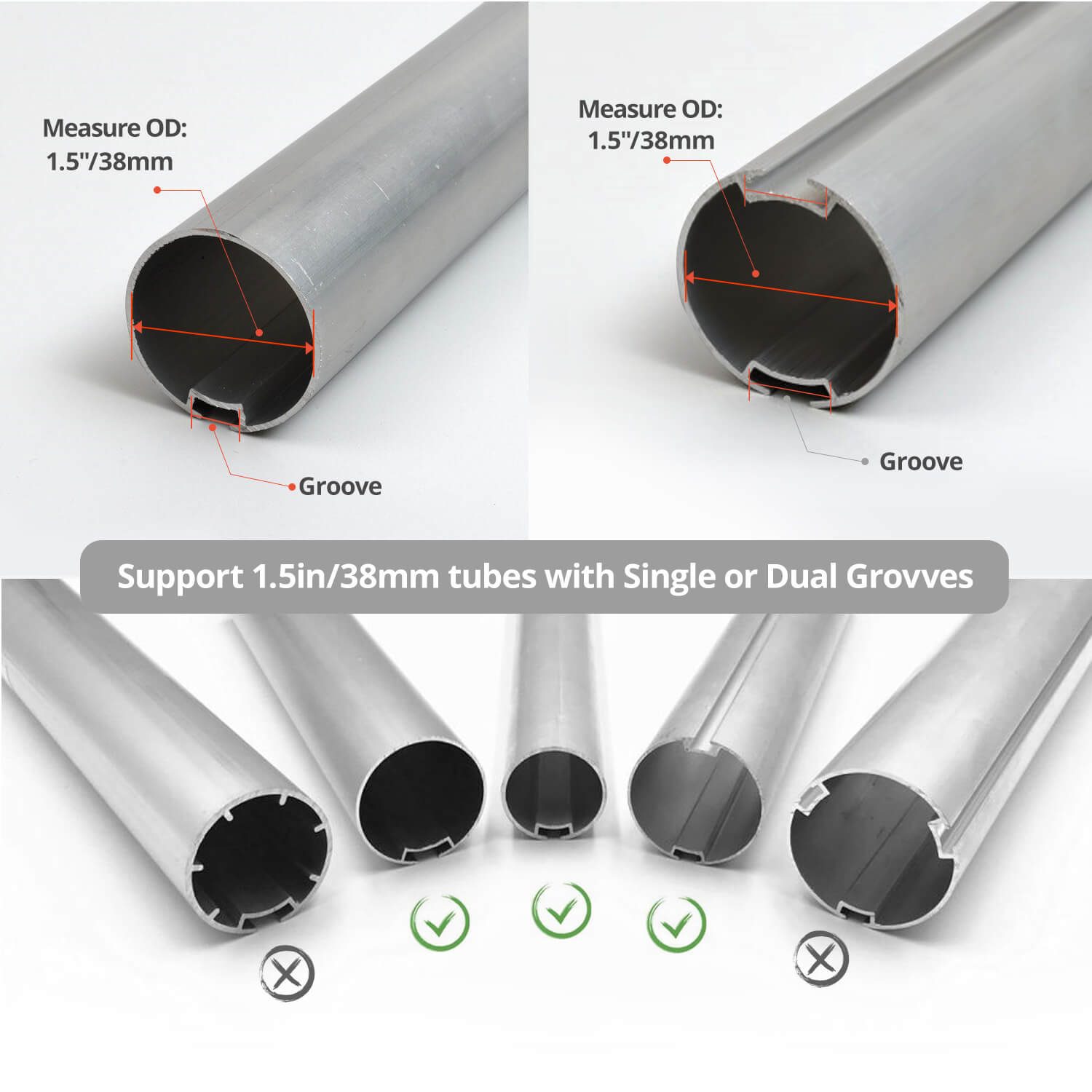

- Tube diameter (common sizes include about 1 1/2 inches, 1 3/4 inches, 2 inches, and larger for wide shades)
- Bracket type (open bracket, cassette, fascia)
Also note whether the clutch is on the left or right.
If you have a wide shade (picture window) or a tall installation, hardware sizing matters more. See best-roller-shades-wide-picture-window-single-panel and best-roller-shades-tall-narrow-windows.
If you’re considering a full replacement instead of repairs, custom-roller-shades-vs-home-depot compares quality and sizing differences that often affect clutch performance.
For a room that needs an especially polished look (living rooms and main areas), best-roller-shades-living-room explains fabric and hardware choices that tend to feel smoother in daily use.
Step 3: remove the shade safely
- Lower the shade fully.
- Keep a hand on the tube so it doesn’t drop.
- Release the idle end (pin side) from its bracket.
- Slide the clutch end out.
If the shade is large, get a second person. Dropping the tube can bend it, which can cause permanent uneven rolling.

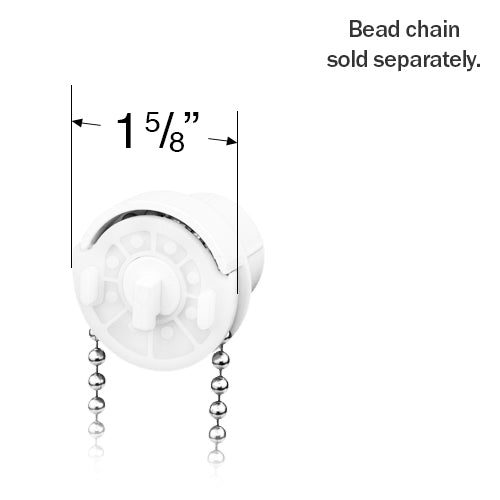

Step 4: remove and replace the clutch
Clutch removal depends on your system.
Common approaches:
- Some clutches slide out of the tube with firm pulling.
- Some have a retaining clip or screw.
When installing the new clutch:
- Push it fully into the tube.
- Ensure it seats flush so the tube doesn’t wobble.
If you feel resistance, don’t force it—clutch-to-tube mismatch is the most common reason replacements fail.
World Wide Shades can help you match the correct clutch to your tube size—use Contact or call (844) 674-2716.
Step 5: replace the chain loop
A chain that’s too long will drag; too short can be uncomfortable to use.
A practical target is to have the bottom of the chain loop fall around shoulder-to-waist height for the primary user.
- Remove the chain connector.
- Pull the old chain out of the clutch sprocket.
- Thread the new chain into the sprocket.
- Reconnect the loop.
If you need a child-safe setup, also review child-safe-window-treatments for tensioners and cord safety.
If you’re replacing a clutch because the shade never felt smooth from day one, custom-roller-shades-vs-home-depot explains why better tubes and hardware tolerances reduce future clutch wear.
Step 6: reinstall and test smooth operation
- Place the clutch end into its bracket.
- Seat the idle pin end.
- Cycle the shade fully down and up 3–5 times.
Watch for:
- Smooth, consistent resistance
- No slipping or jumping
- Fabric rolling evenly
If the shade rolls to one side after the repair, use how-to-troubleshoot-roller-shade-uneven-tracking and confirm the brackets are level.
Common problems after clutch/chain replacement (and fixes)
Likely causes:
- Wrong clutch size
- Clutch not seated fully
- Tube or drive adapter worn
If the clutch slips even with a correct match, consider replacing the shade via the World Wide Shades Builder.
Likely causes:
- Brackets too tight or misaligned
- Shade rubbing trim
- Fabric telescoping
Fix alignment issues first. how-to-install-roller-shades can help you verify bracket spacing and level.
Some systems rely on internal clutch braking. If it won’t hold position, the clutch may be incorrect or defective.
A simple sizing rule for choosing clutch strength
Not all clutches feel the same. Larger and heavier shades need stronger clutch/brake designs.
A practical rule of thumb:
- Under about 30 inches wide: standard clutch is usually fine.
- Around 30–60 inches wide: choose a heavier-duty clutch or stronger brake.
- Over about 60 inches wide: confirm tube size and clutch rating before you buy.
If you’re not sure where your shade falls, measure width and call (844) 674-2716—World Wide Shades can recommend the right hardware level.
Two quick tests to confirm the new clutch is “matched”
After installation, these tests help you confirm you didn’t choose an underpowered or mismatched clutch.
Lower the shade to about halfway and stop pulling.
- If it creeps down, the clutch brake may be too weak or defective.
- If it snaps upward, something may be binding or incorrectly seated.
Cycle the shade from top to bottom.
- Resistance should feel relatively steady.
- Sudden tight spots suggest rubbing, bracket misalignment, or a tube that’s slightly bent.
If either test fails, contact World Wide Shades or call (844) 674-2716 before you keep using the shade.
How to keep your new chain/clutch running smoothly
A few small habits can extend the life of the replacement.
- Pull the chain straight down (not at an angle) to avoid side-loading the clutch.
- Use a chain tensioner so the loop doesn’t slap the wall.
- Avoid yanking the chain quickly at the bottom stop; smooth pulls reduce shock.
If you’re upgrading for safety (kids or pets), child-safe-window-treatments is a helpful reference.
Shopping checklist: what to confirm before you buy parts
This is the fast list that prevents wrong-part orders.
- Tube diameter (measure it)
- Clutch model or photos from multiple angles
- Chain bead size and material (plastic vs metal)
- Side (left or right control)
- Bracket type (open bracket, cassette, fascia)
If you want a quick confirmation before you click “buy,” send photos via Contact or call (844) 674-2716.
When it’s smarter to replace the whole shade
Replacing the clutch is worth it when the fabric and tube are in good condition.
Replace the whole shade when:
- Fabric edges are frayed
- Tube is bent (shade cones every time)
- You’re upgrading for better light control or UV protection
For replacement planning and budgeting, see how-much-do-custom-roller-shades-cost and custom-roller-shade-lead-times-what-to-expect.
To match a fabric across rooms, request materials from Swatches & Samples.
FAQ: replacing roller shade clutches and chains
Yes, if the clutch turns smoothly and holds position. If the clutch slips, clicks, or binds, replace it too.
Measure your tube diameter and match the clutch to that size. If you’re unsure, call (844) 674-2716 and World Wide Shades can help identify the correct part.
A small amount of resistance can be normal, but stiffness often means misalignment, rubbing, or a clutch that doesn’t match the tube.
In many homes, yes—especially with children or pets. Review child-safe-window-treatments for safe chain management.
Yes. Contact World Wide Shades or call (844) 674-2716 with photos of your clutch and tube measurements.
